MVGH Horizontal Vibrating Grizzly Feeder
Just like the MVG Feeders, the Minyu Horizontal Vibrating Grizzly (MVGH) Feeders are designed for regulating the feed rate to the crusher by separating the materials for sizing, removing the unwanted, and bypassing the smaller for the crusher so as to maximize the crushing capacity. However, the MVGH Feeders come in lower profile and longer in length. They are generally applied for portable crushing applications. The vibrating unit consists of two unbalanced, counter-rotating shafts. They generate an elliptical motion throwing materials upward and forward with continuous turning actions. The timing gears are adjustable to control the direction of the throw and the concentration of vibrating actions.
- Entire Feeder mounted on spring to allow free vibration and absorb shock loads.
- Bolt-in adjustable grizzly bars able to space to users requirements in the field.
- Tapered grizzly bars to prevent binding and promote rapid discharge of under size materials.
- Driven by a vari-speed motor allowing adjustable feed rates.
| Model No. | Feeder Size W x L (ft/mm) | Max. Lump Size (in/mm) | RPM | Capacity T/H | Motor (HP/kW) | Approx. Weight (lbs/kg) |
|---|---|---|---|---|---|---|
| MVGH824 | 2 1/2x8 / 800x2400 | 18 / 450 | 600~850 | 200~300 | 15-20 / 11-15 | 7,590 / 3,450 |
| MVGH943 | 3x14 / 884x4300 | 20 / 500 | 600~850 | 300~400 | 20-30 / 15-20 | 9,790 / 4,450 |
| MVGH1150 | 4x16 / 1134x5000 | 22 / 550 | 600~850 | 450~550 | 30-40 / 22-30 | 11,770 / 5,350 |
| MVGH1360 | 4x20 / 1288x6000 | 24 / 600 | 600~850 | 600~700 | 40-55 / 30-40 | 14,080 / 6,400 |
| MVGH1560 | 5x20 / 1500x6000 | 40 / 1000 | 600~850 | 700~800 | 50-67 / 37-50 | 15,510 / 7,050 |
Capacity based on continuous regulated feed of clean, dry limestone of normal hardness with a bulk density of 1.6 ton/m3. Capacity may vary +/- 25% with the size and nature of the rock and the working conditions of the plant.
All parameters are for reference only & subject to change without notice.

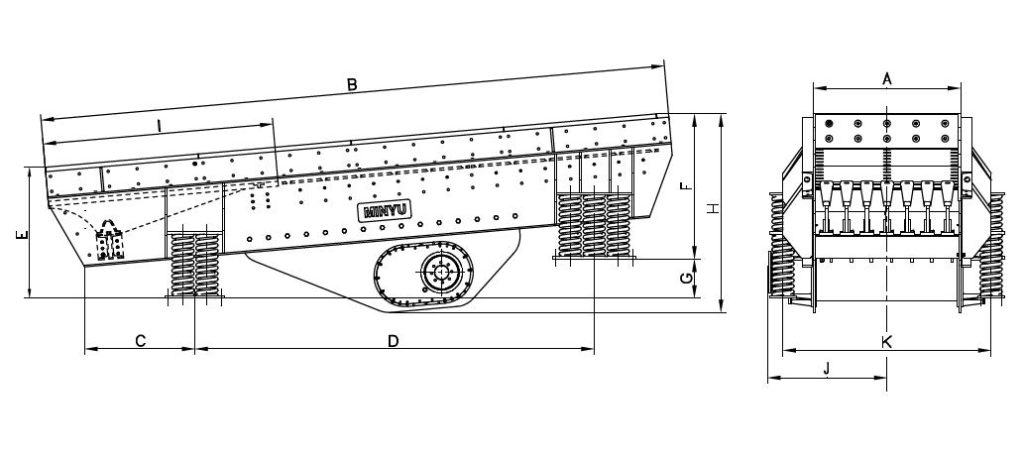

Dimensions (mm)
| Model No. | A | B | C | D | E | F | G | H | I | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MVGH824 | 800 | 2400 | 433 | 1607 | 970 | 1535 | 344 | 1535 | 1145 | 780 | 1156 |
| MVGH943 | 884 | 4300 | 618 | 2700 | 959 | 1105 | 236 | 1536 | 1859 | 828 | 1400 |
| MVGH1150 | 1134 | 5000 | 876 | 3165 | 945 | 1120 | 290 | 1556 | 1872 | 962 | 1650 |
| MVGH1360 | 1288 | 6000 | 840 | 4265 | 1035 | 1165 | 386 | 1600 | 1836 | 1063 | 1804 |
| MVGH1560 | 1500 | 6000 | 840 | 4265 | 1035 | 1165 | 386 | 1600 | 1836 | 1178 | 2016 |
As factors, such as the feeding method, the material characteristics, the speed, the power applied, the hardness or compressive strength, or the mineral and moisture content of the material, will affect production capacities and gradations, Minyu Machinery does not guarantee production or gradation results presented in this catalog. All technical data and results should be used as a reference as they will vary with different field applications or operating conditions. All technical data and specs details are subject to change without notice, for continuous improvement purposes.
Note: Specifications and dimensions are subject to change without notice.
