MLH Horizontal Vibrating Screen

Minyu's advanced design and engineering provides a stronger centrifugal force which processes more materials per size than competitors.

MLH Horizontal Vibrating Screen

Minyu Low Head (MLH) Screens are horizontal screens to which an extremely powerful linear vibrating motion is imparted by two unbalanced eccentric shafts and weights. The screens efficiently handle a large amount of materials, resist clogging, and suit best for classifying small granules.

  • Stronger centrifugal force is generated out of advanced design and engineering.
  • The fed-in materials move rapidly, so the MLH screens can process more materials per certain size of the cloth than competitors.
  • Stronger dewatering power is in effect when the MLH screens handle damp materials.
Model No.Screen Size (in/mm)DeckDouble Amplitude (mm)Vibrating Frequency (rpm)Power (HP/kW)Weight (lbs/kg)
MLH924D3x8 / 900x240029.5 ± 0.59507 / 5.53,564 / 1,620
MLH1230D4x10 / 1200x300029.5 ± 0.595015 / 115,610 / 2,550
MLH1230T4x10 / 1200x300039.5 ± 0.595015 / 116,490 / 2,950
MLH1536D5x12 / 1500x360029.5 ± 0.595020 / 157,480 / 3,400
MLH1536T5x12 / 1500x360039.5 ± 0.595025 / 18.510,230 / 4,650
MLH1848D6x16 / 1800x4800210.5 ± 0.595040 / 3015,180 / 6,900
MLH1848XT6x16 / 1800x4800310.5 ± 0.595050 / 3717,710 / 8,050
MLH2160XD7x20 / 2100x6000210.5 ± 0.595050 / 3719,580 / 8,900
MLH2160XT7x20 / 2100x6000310.5 ± 0.595060 / 4525,300 / 11,500
MLH2460XD8x20 / 2400x6000210.5 ± 0.590060 / 4523,210 / 10,550
MLH2460XT8x20 / 2400x6000310.5 ± 0.590075 / 5527,280 / 12,400

Capacity based on continuous regulated feed of clean, dry limestone of normal hardness with a bulk density of 1.6 ton/m3. Capacity may vary +/- 25% with the size and nature of the rock and the working conditions of the plant.

All parameters are for reference only & subject to change without notice.

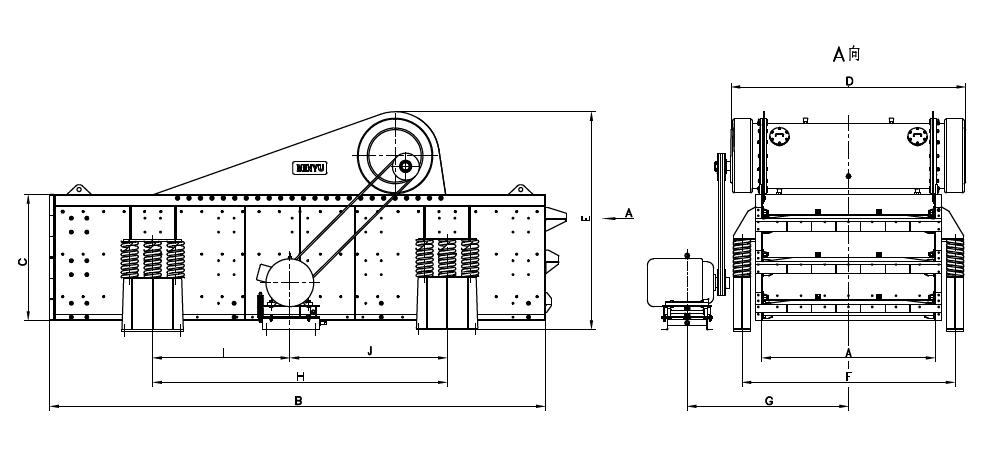

Minyu MLH Horizontal Vibrating Screen: Dimensions

Dimensions (mm)

Model No.Screen Size (mm)DeckDimensions (mm)ABCDEFGHIJ
MLH924D3x8 / 900x24002-9002400720131513801240101119068931013
MLH1230D4x10 / 1200x30002-120030007501689154716321291240012791121
MLH1230T4x10 / 1200x30003-120030001000168918081632128224001438962
MLH1536D5x12 / 1500x36002-15003600750201616301920137523921539856
MLH1536T5x12 / 1500x36003-1500360011002016199019201510280017951005
MLH1848D6x16 / 1800x48002-1800480010002546211723061794335019371413
MLH1848XT6x16 / 1800x48003-1800480015402546264723151794290010211879
MLH2160XD7x20 / 2100x60002-2100600012402852234726061929371022911409
MLH2160XT7x20 / 2100x60003-2100600015402852268126061970360015382062
MLH2460XD8x20 / 2400x60002-2400600014003250263229062192360015352066
MLH2460XT8x20 / 2400x60003-2400600018003250298529062192360015242076

Note: Specifications and dimensions are subject to change without notice.
